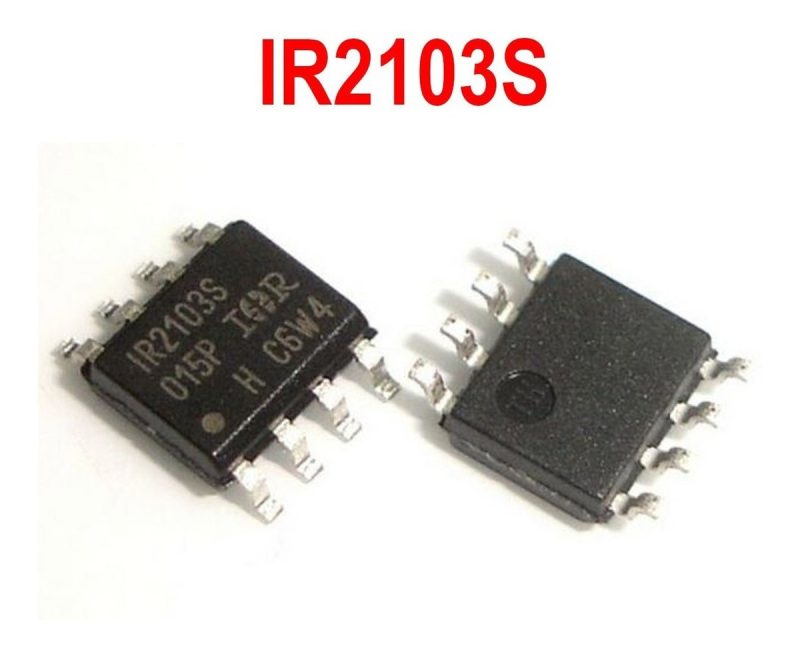

Ir2103s Ir-2103 Ir2103 Ir 2103 Driver Half Bridge Soic8
$ 16.000
Ir 2103 Ir-2103 Ir2103 Ir2103s Driver Half Bridge Soic8
*************************************************************************************************************************************************************
Manufacturer: Infineon
Product Category: Gate Drivers
RoHS: Details
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Number of Drivers: 2 Driver
Output Current: 360 mA
Rise Time: 170 ns
Fall Time: 90 ns
Supply Voltage – Max: 20 V
Supply Voltage – Min: 10 V
Propagation Delay – Max: 60 ns
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 125 C
Type: High Side, Low Side
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Features: Synchronous
Height: 1.5 mm
Length: 5 mm
Number of Outputs: 2 Output
Technology: Si
Width: 4 mm
Brand: Infineon / IR
Logic Type: CMOS, TTL
CNHTS: 8542319000
HTS Code: 8542310001
Maximum Turn-Off Delay Time: 220 ns
Maximum Turn-On Delay Time: 820 ns
MXHTS: 85423102
Pd – Power Dissipation: 625 mW
Product Type: Gate Drivers
Subcategory: PMIC – Power Management ICs
TARIC: 8542319000
Part # Aliases: SP001543892
Unit Weight: 540 mg
*************************************************************************************************************************************************************
La Compra es Automatizada y 100% segura, se cancela a Traves de Mercadopago y luego te enviamos por Servientrega o Mercadoenvios que es lo mismo, puede cancelar via Transferencia, Tarjeta de Credito, Efecty.
—————————————————————————————————————-
El Sistema a veces se demora en actualizar el status de envio en mercadolibre.
