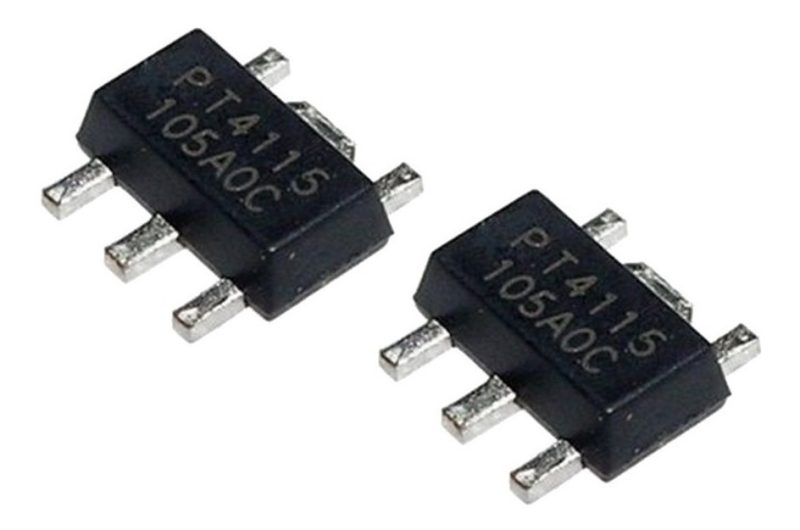

Kit X 2 Unidades Pt4115 Pt 4115 Driver Backlight Led Powtech

$ 9.000 $ 8.100

Comprar vía WhatsApp

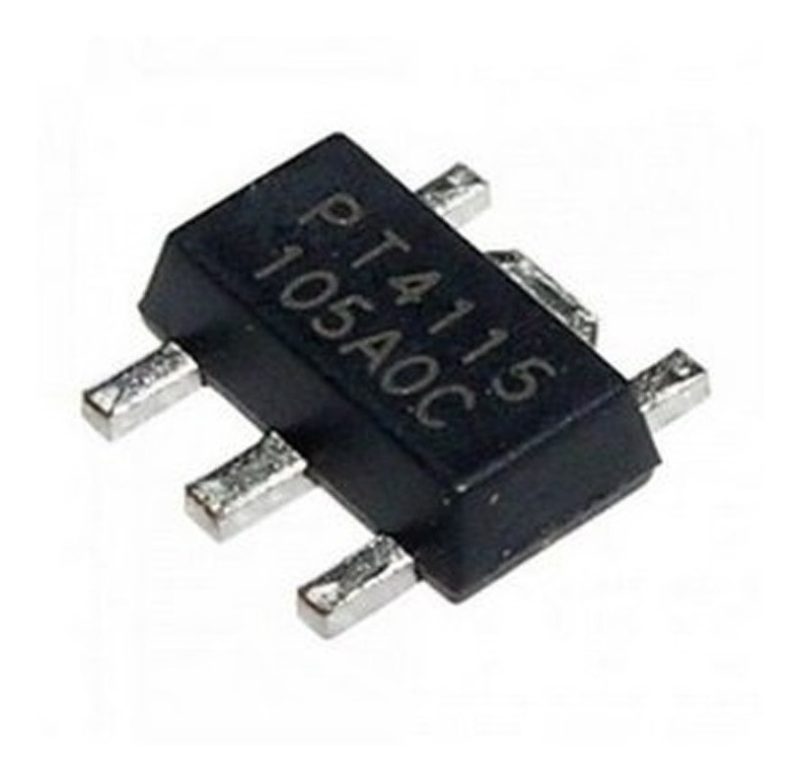

Pt4115 Controlador Led Alta Intensidad Vehiculo, Leds, LCD, PWM Microcontroladores, etc.

*************************************************************************************************************************************************************

The PT4115 is a continuous conduction mode inductive
step-down converter, designed for driving single or
multiple series connected LED efficiently from a
voltage source higher than the total LED chain voltage.
The device operates from an input supply between 6V
and 30V and provides an externally adjustable output
current of up to 1.2A. Depending upon the supply
voltage and external components, the PT4115can
provide more than 30 watts of output power.
The PT4115 includes the power switch and a high-side
output current sensing circuit, which uses an external
resistor to set the nominal average output current, and a
dedicated DIM input accepts either a DC voltage or a
wide range of pulsed dimming. Applying a voltage of
0.3V or lower to the DIM pin turns the output off and
switches the device into a low current standby state.
The PT4115 is available in SOT89-5 and ESOP8
packages.

FEATURES
¿ Simple low parts count
¿ Wide input voltage range: 6V to 30V
¿ Up to 1.2A output current
¿ Single pin on/off and brightness control using DC
voltage or PWM
¿ Up to 1MHz switching frequency
¿ Typical 5% output current accuracy
¿ Inherent open-circuit LED protection
¿ High efficiency (up to 97%)
¿ High-Side Current Sense
¿ Hysteretic Control: No Compensation
¿ Adjustable Constant LED Current
¿ ESOP8 package for large output power application
¿ RoHS compliant
APPLICATIONS
¿ Low voltage halogen replacement LEDs
¿ Automotive lighting
¿ Low voltage industrial lighting
¿ LED back-up lighting
¿ Illuminated signs
¿ SELV lighting
¿ LCD TV backlighting

*************************************************************************************************************************************************************
La Compra es Automatizada y 100% segura, se cancela a Traves de Mercadopago y luego te enviamos por Servientrega o Mercadoenvios que es lo mismo, puede cancelar via Transferencia, Tarjeta de Credito, Efecty.
—————————————————————————————————————-
El Sistema a veces se demora en actualizar el status de envio en mercadolibre.
