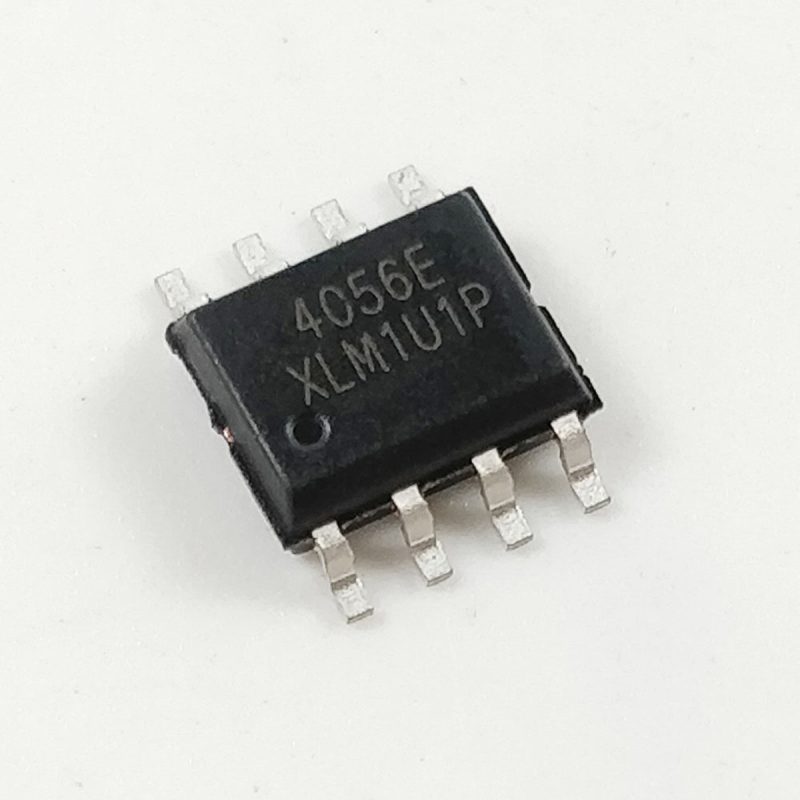

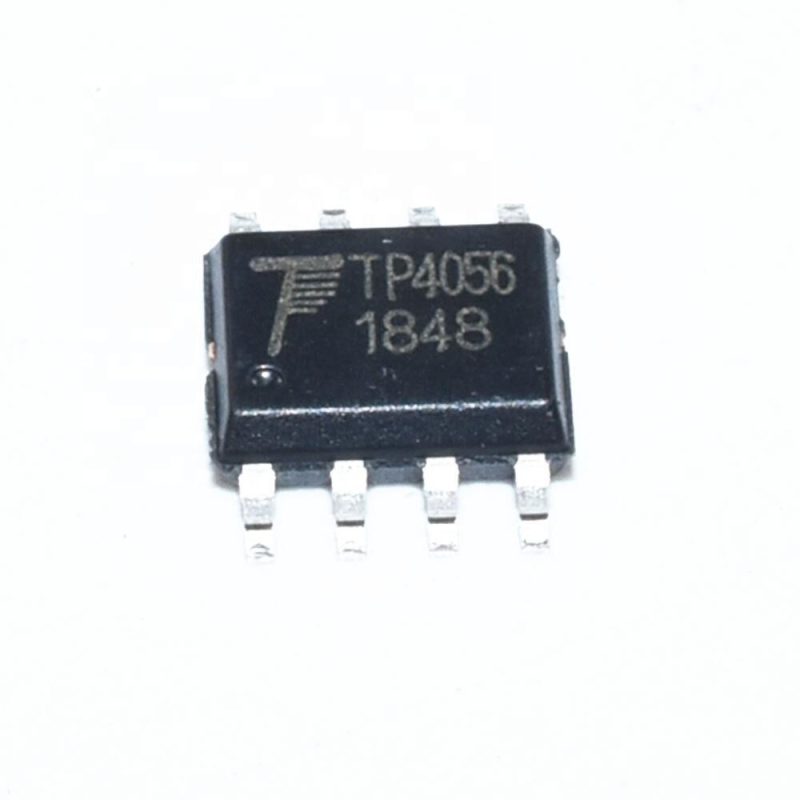

10 x TP4056 IC Cincuito integrado Cargador Baterias SOP8

*************************************************************************************************************************************************************

FEATURES
· Programmable Charge Current Up to
1000mA
·No MOSFET, Sense Resistor or Blocking
Diode Required
· Complete Linear Charger in SOP-8
Package for Single Cell Lithium-Ion
Batteries
·Constant-Current/Constant-Voltage
·Charges Single Cell Li-Ion Batteries Directly
from USB Port
·Preset 4.2V Charge Voltage with 1.5%
Accuracy
·Automatic Recharge
·two Charge Status Output Pins
·C/10 Charge Termination
·2.9V Trickle Charge Threshold (TP4056)
·Soft-Start Limits Inrush Current
·Available Radiator in 8-Lead SOP Package,
the Radiator need connect GND or
impending

ABSOLUTE MAXIMUM RATINGS
·Input Supply Voltage(VCC):-0.3V 8V
·TEMP:-0.3V 10V
·CE:-0.3V 10V
·BAT Short-Circuit Duration:Continuous
·BAT Pin Current:1200mA
·PROG Pin Current:1200uA
·Maximum Junction Temperature:145¿
·Operating Ambient Temperature Range:-40
¿ 85¿
·Lead Temp.(Soldering, 10sec):260¿

ABSOLUTE MAXIMUM RATINGS
·Input Supply Voltage(VCC):-0.3V 8V
·TEMP:-0.3V 10V
·CE:-0.3V 10V
·BAT Short-Circuit Duration:Continuous
·BAT Pin Current:1200mA
·PROG Pin Current:1200uA
·Maximum Junction Temperature:145¿
·Operating Ambient Temperature Range:-40
·Lead Temp.(Soldering, 10sec):260¿

*************************************************************************************************************************************************************
La Compra es Automatizada y 100% segura, se cancela a Traves de Mercadopago y luego te enviamos por Servientrega o Mercadoenvios que es lo mismo, puede cancelar via Transferencia, Tarjeta de Credito, Efecty.
—————————————————————————————————————-
El Sistema a veces se demora en actualizar el status de envio en mercadolibre.
