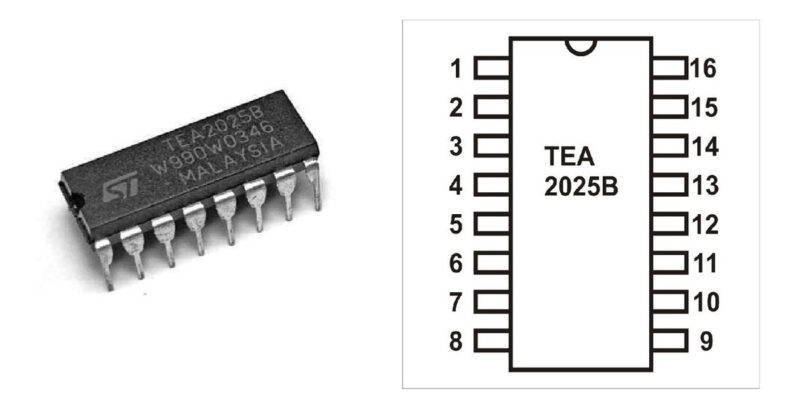

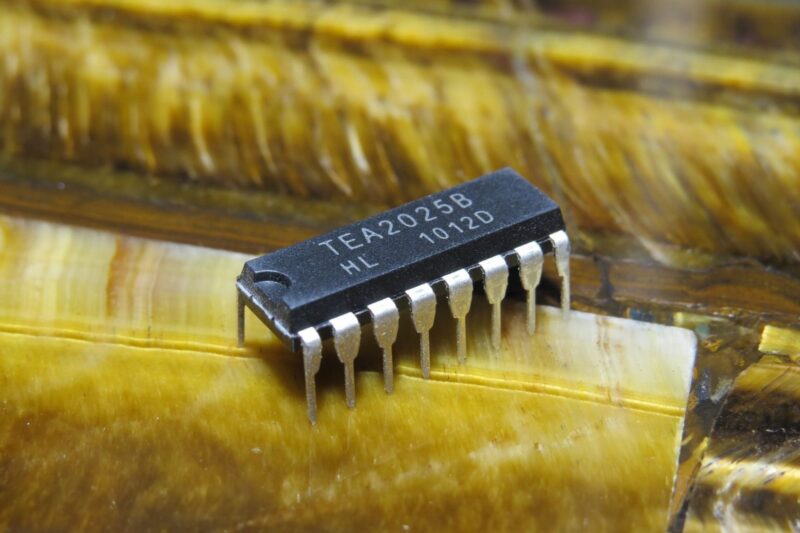

2 X Tea2025 Tea2025b Stereo Audio Amplifier Dip-16 2025b

2 x Tea2025 Tea2025b Stereo Audio Amplifier Dip-16 1c536 2025b

*************************************************************************************************************************************************************

Product Category: Audio Amplifiers
RoHS: Details
Series: TEA2025
Product: Audio Amplifiers
Class: Class-AB
Output Power: 4.7 W
Mounting Style: Through Hole
Type: 1-Channel Mono or 2-Channel Stereo
Package / Case: PDIP-16
Audio – Load Impedance: 32 Ohms
THD plus Noise: 0.5 %
Supply Voltage – Max: 12 V
Supply Voltage – Min: 3 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 150 C
Packaging: Tube
Description/Function: Speaker
Height: 4.59 mm
Input Type: Single
Length: 20 mm
Output Current: 1500 mA
Supply Type: Single
Width: 7.1 mm
Brand: STMicroelectronics
Gain: 51 dB
Number of Channels: 2 Channel
Operating Supply Current: 1.5 A
Operating Supply Voltage: 5 V, 9 V
Output Signal Type: Differential, Single
Product Type: Audio Amplifiers
PSRR – Power Supply Rejection Ratio: 46 dB
Subcategory: Audio ICs
Unit Weight: 1.628 g

*************************************************************************************************************************************************************
