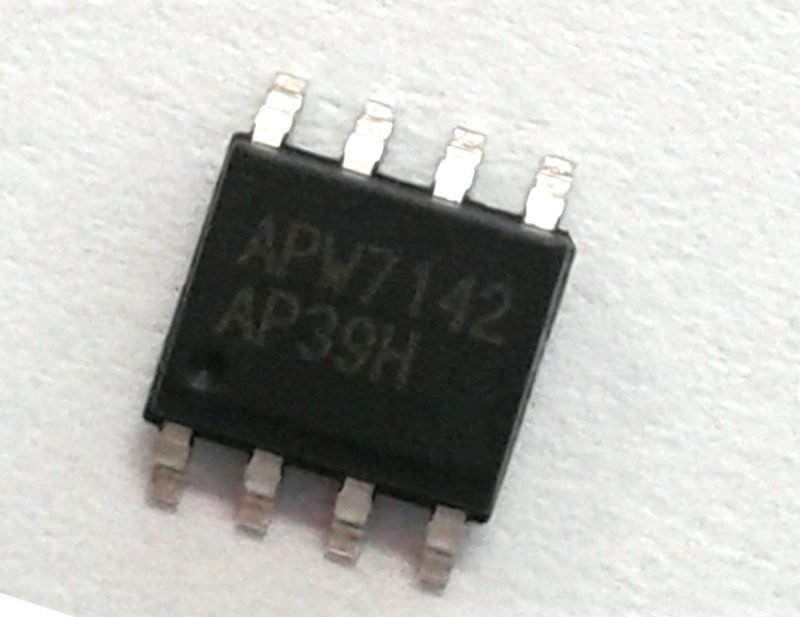

Apw7142 Apw-7142 Apw 7142 Original Circuito Integrado

Apw7142 Smd Superficial Regulador De Voltaje 3a 12v

*************************************************************************************************************************************************************

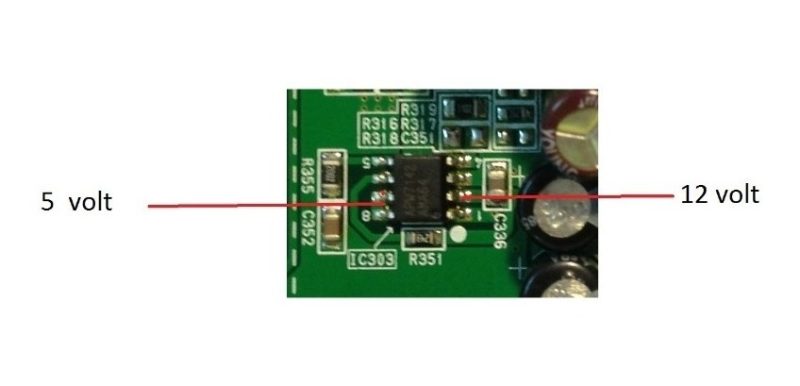

empleado regularmente en notebooks, tarjetas madres, televisores y otros usos de regulacion de potencia.

Features General Description
· Wide Input Voltage from 4.3V to 14V
· Output Current up to 3A
· Adjustable Output Voltage from 0.8V to VIN
– ±2% System Accuracy
· 70mW Integrated Power MOSFETs
· High Efficiency up to 95%
– Automatic Skip/PWM Mode Operation
· Current-Mode Operation
– Easy Feedback Compensation
– Stable with Low ESR Output Capacitors
– Fast Load/Line Transient Response
· Power-On-Reset Monitoring
· Fixed 500kHz Switching Frequency in PWM Mode
· Built-In Digital Soft-Start and Soft-Stop
· Current-Limit Protection with FrequencyFoldback
· 123% Over-Voltage Protection
· Hiccup-Mode 50% Under-Voltage Protection
· Over-Temperature Protection
· · Small SOP-8 Package
· Lead Free and Green Devices Available
(RoHS Compliant)

*************************************************************************************************************************************************************
