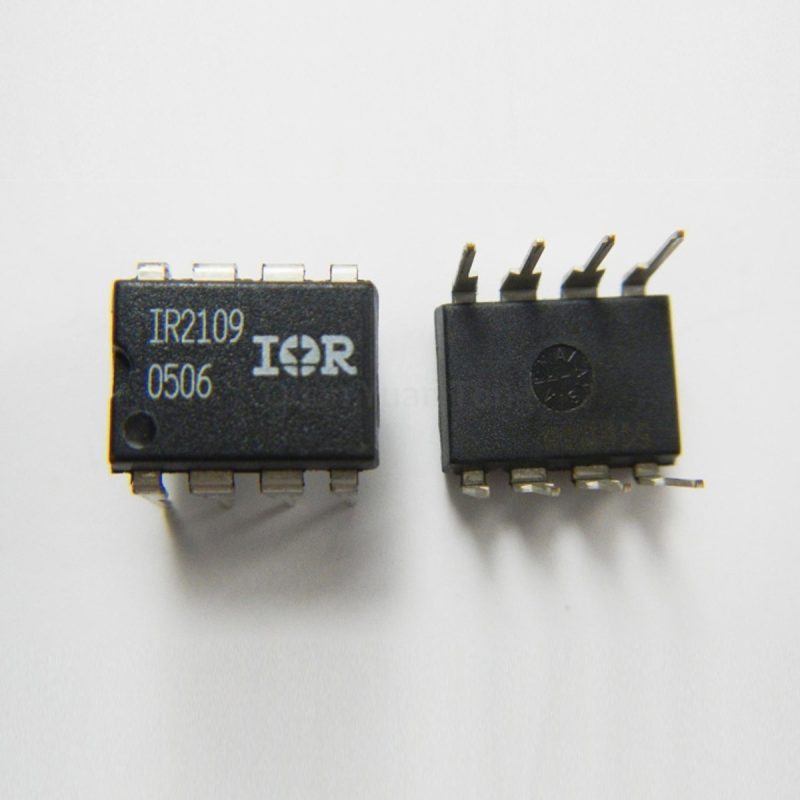

Circuito Integrado Ir2109 2109 Driver Gate

Circuito Integrado Ir2109 2109

*************************************************************************************************************************************************************

Manufacturer: Infineon
Product Category: Gate Drivers
RoHS: Details
Mounting Style: Through Hole
Package / Case: PDIP-8
Product: Half-Bridge Drivers
Number of Drivers: 2 Driver
Output Current: 200 mA
Configuration: Inverting, Non-Inverting
Rise Time: 220 ns
Fall Time: 80 ns
Supply Voltage – Max: 20 V
Supply Voltage – Min: 10 V
Propagation Delay – Max: 950 ns
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 125 C
Type: High Side/Low Side
Packaging: Tube
Features: Synchronous
Height: 5.33 mm (Max)
Length: 10.92 mm (Max)
Number of Outputs: 2 Output
Output Voltage: 10 V to 20 V
Width: 7.11 mm (Max)
Brand: Infineon / IR
Logic Type: CMOS, TTL
Maximum Turn-Off Delay Time: 280 ns
Maximum Turn-On Delay Time: 950 ns
Operating Supply Current: 1.6 mA
Pd – Power Dissipation: 1 W
Product Type: Gate Drivers
Subcategory: PMIC – Power Management ICs
Part # Aliases: SP001538060
Unit Weight: 1 g

*************************************************************************************************************************************************************
La Compra es Automatizada y 100% segura, se cancela a Traves de Mercadopago y luego te enviamos por Servientrega o Mercadoenvios que es lo mismo, puede cancelar via Transferencia, Tarjeta de Credito, Efecty.
—————————————————————————————————————-
El Sistema a veces se demora en actualizar el status de envio en mercadolibre.
