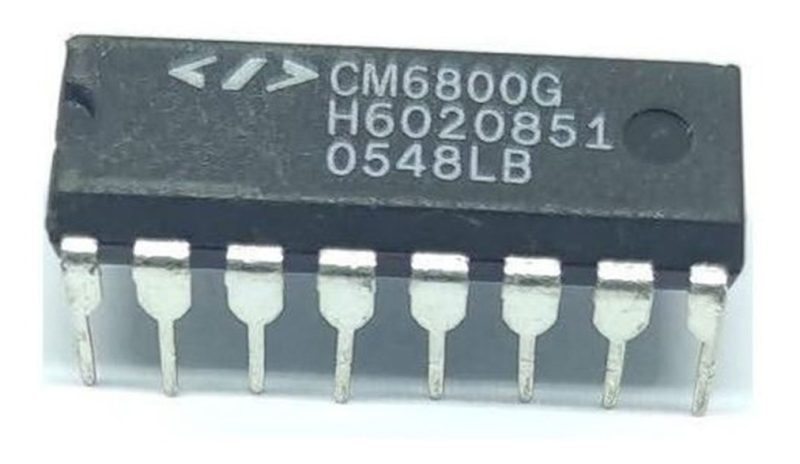

Cm6800g Cm6800 Ic Controlador Smps Fuentes Original Dip16

*************************************************************************************************************************************************************

• Fabricante: CHAMPION
• Código: CM6800G

• Descripción:
Controlador PWM + PFC Combinados en un único IC
– Pin to pin compatible with ML4800 and FAN4800
– Additional folded-back current limit for PWM section.
– 23V Bi-CMOS process
– VIN OK turn on PWM at 2.5V instead of 1.5V
– Internally synchronized leading edge PFC and trailing edge PWM in one IC
– Slew rate enhanced transconductance error amplifier for ultra-fast PFC response
– Low start-up current (100¿ A typ.)
– Low operating current (3.0mA type.)
– Low total harmonic distortion, high PF
– Reduces ripple current in the storage capacitor between the PFC and PWM sections
– Average current, continuous or discontinuous boost leading edge PFC
– VCC OVP Comparator, Low Power Detect Comparator
– PWM configurable for current mode or voltage mode operation
– Current fed gain modulator for improved noise immunity
– Brown-out control, over-voltag
– Encapsulado: DIP-16

• Aplicaciones:
– Fuentes de Tv LCD y LED
– Fuentes varias

*************************************************************************************************************************************************************
