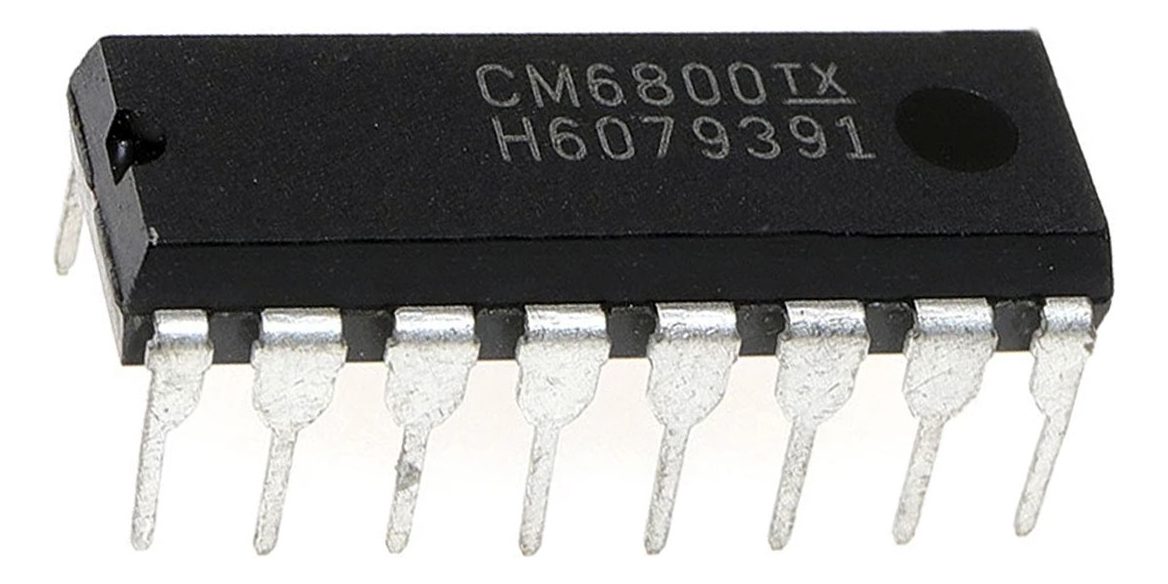

Cm6800tx = Epa/85+ Pfc+pwm Combo Controller Orig. Champion

CM6800TX = EPA/85+ PFC+PWM COMBO CONTROLLER

*************************************************************************************************************************************************************

(Turbo-Speed PFC+Green PWM) EPA/85+ PFC+PWM COMBO CONTROLLER Design for High Efficient Power Supply GENERAL DESCRIPTION CM6800T is a turbo-speed PFC and a Green PWM controller. It is designed to further increase power supply efficiency while using the relatively lower 380V Bulk Capacitor value.

Switching to CM6800T from your existing CM6800 family boards can gain the following advanced performances:

1.) Hold Up time can be increased 30% from the existing 6800 power supply
2.) Turbo Speed PFC may reduce 420 Bulk Capacitor size
3.) 420V bulk capacitor value may be reduced and PFC Boost Capacitor ripple current can be reduced
4.) No Load Consumption can be reduced 290mW at 270VAC
5.) Better Power Factor and Better THD
6.) Clean Digital PFC Brown Out
7.) PWM transformer size can be smaller
8.) Superior Surge Noise Immunity
9.) To design 12V, 5V, and 3.3V output filters can be easy
10.) The stress over the entire external power device is reduced and EMI noise maybe reduced; PFC inductor core might be reduced
11.) Monotonic Output design is easy
12.) And moreA Of course, the cost can be reduced CM6800T is pin to pin compatible with CM6800 family. Beside all the goodies in the CM6800, it is designed to meet the EPA/85+ regulation. With the proper design, its efficiency of power supply can easily approach 85%.

*************************************************************************************************************************************************************
