Ir2110 Ir2110pbf Irs2110 Ir Irs 2110 Dip
$ 7.900
Ir2110 DIP
*************************************************************************************************************************************************************
• Fabricante: International Rectifier
• Código: IR2110PbF
· Marking: IR2110
Reemplaza IRS2110PbF / IRS2110 DIP-14
• Descripción:
Driver para MOSFET e IGBT

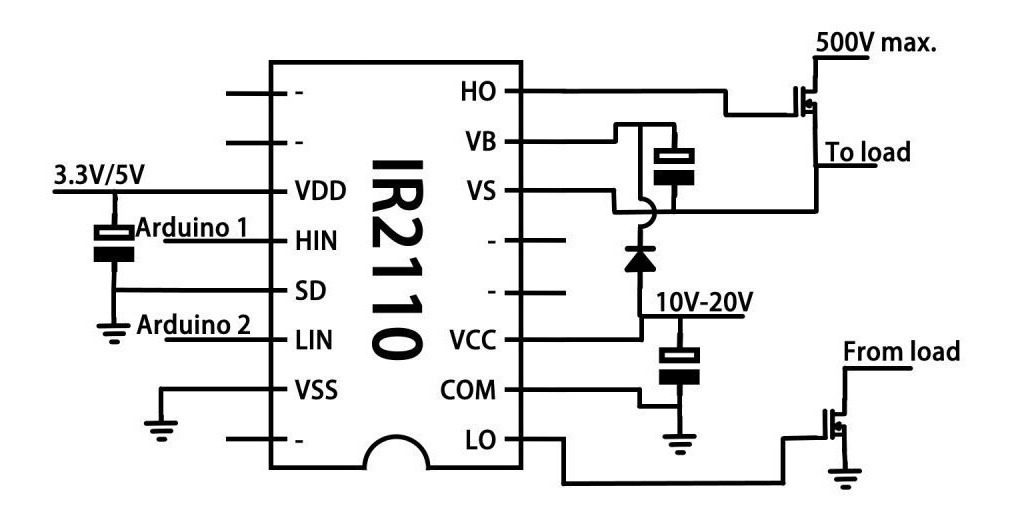

· Floating channel designed for bootstrap operation
· Fully operational to +500 V or +600 V
· Tolerant to negative transient voltage, dV/dt immune
· Gate drive supply range from 10 V to 20 V
· Undervoltage lockout for both channels
· 3.3 V logic compatible
· Separate logic supply range from 3.3 V to 20 V
· Logic and power ground ± 5V offset
· CMOS Schmitt-triggered inputs with pull-down
· Cycle by cycle edge-triggered shutdown logic
· Matched propagation delay for both channels
· Outputs in phase with inputs
– Encapsulado DIP-14
• Aplicaciones:
– UPS
– Driver de Motor
– Conversores
– Otros
*************************************************************************************************************************************************************
