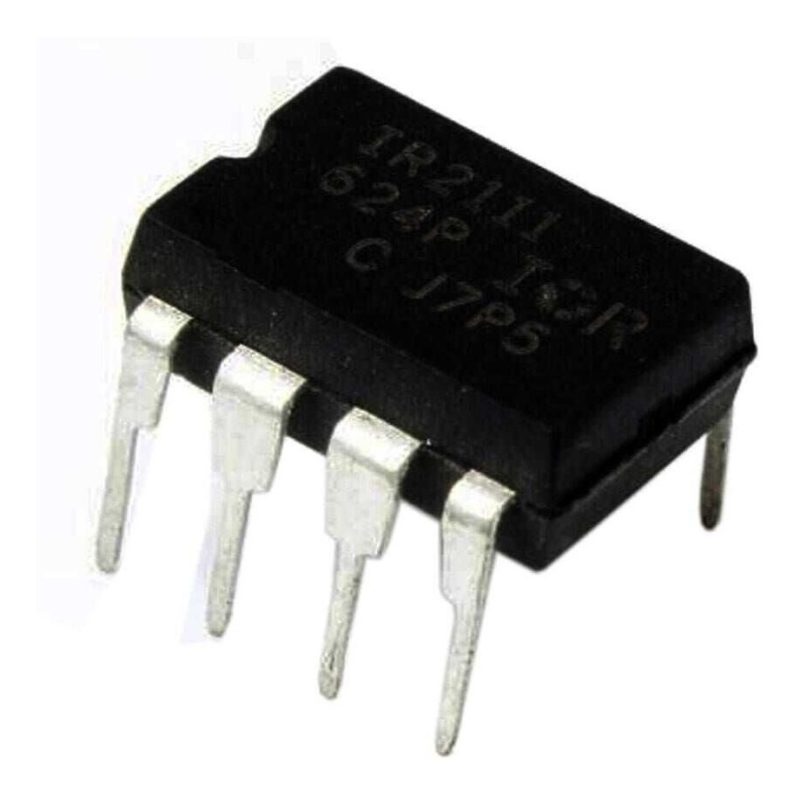

Ir2111 Dip8 Oscilador De Alta Potencia Original Infineon
$ 15.210 $ 13.689
Comprar vía WhatsApp
Ir2111 Dip8 Oscilador De Alta Potencia Original Infineon
*************************************************************************************************************************************************************
Manufacturer: Infineon
Product Category: Gate Drivers
RoHS: Details
Mounting Style: Through Hole
Package / Case: PDIP-8
Product: Half-Bridge Drivers
Number of Drivers: 2 Driver
Output Current: 200 mA
Configuration: Inverting, Non-Inverting
Rise Time: 130 ns
Fall Time: 65 ns
Supply Voltage – Max: 20 V
Supply Voltage – Min: 10 V
Propagation Delay – Max: 950 ns
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 125 C
Type: High and Low Side Driver
Packaging: Tube
Features: Synchronous
Height: 5.33 mm (Max)
Length: 10.92 mm (Max)
Number of Outputs: 2 Output
Width: 7.11 mm (Max)
Brand: Infineon Technologies
Logic Type: CMOS
Maximum Turn-Off Delay Time: 150 ns
Maximum Turn-On Delay Time: 750 ns
Operating Supply Current: 180 uA
Operating Supply Voltage: 10 V to 20 V
Pd – Power Dissipation: 1000 mW
Factory Pack Quantity: 3000
Part # Aliases: SP001533152
Unit Weight: 1 g
*************************************************************************************************************************************************************
