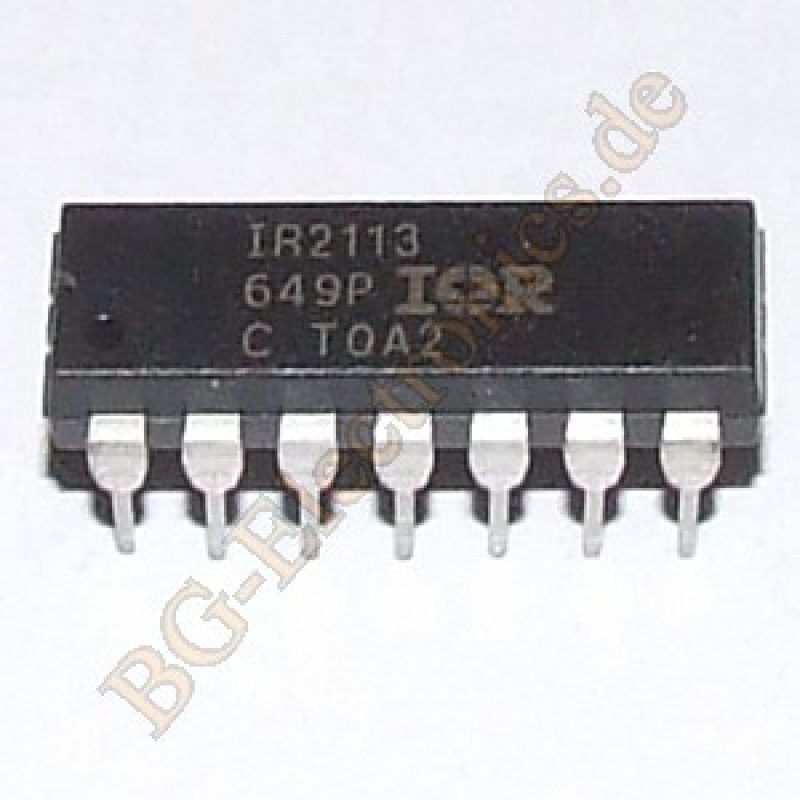

Ir2113 Dip | 2113 | Ir 2113 | Ci Ir2113 Ir2113-1pbf Dip

Ir2113 Dip

*************************************************************************************************************************************************************

Manufacturer: Infineon
Product Category: Gate Drivers
RoHS: Details
Mounting Style: Through Hole
Package / Case: PDIP-14
Product: Half-Bridge Drivers
Number of Drivers: 2 Driver
Output Current: 2.5 A
Configuration: Non-Inverting
Rise Time: 35 ns
Fall Time: 25 ns
Supply Voltage – Max: 20 V
Supply Voltage – Min: 10 V
Propagation Delay – Max: 150 ns
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 125 C
Type: High and Low Side Driver
Packaging: Tube
Features: Independent
Height: 5.33 mm (Max)
Length: 20.19 mm (Max)
Number of Outputs: 2 Output
Width: 7.11 mm (Max)
Brand: Infineon / IR
Logic Type: CMOS, LSTTL
Maximum Turn-Off Delay Time: 94 ns
Maximum Turn-On Delay Time: 120 ns
Operating Supply Current: 340 uA
Operating Supply Voltage: 10 V to 20 V
Pd – Power Dissipation: 1600 mW
Product Type: Gate Drivers
Subcategory: PMIC – Power Management ICs
Unit Weight: 1.620 g

*************************************************************************************************************************************************************
La Compra es Automatizada y 100% segura, se cancela a Traves de Mercadopago y luego te enviamos por Servientrega o Mercadoenvios que es lo mismo, puede cancelar via Transferencia, Tarjeta de Credito, Efecty.
—————————————————————————————————————-
El Sistema a veces se demora en actualizar el status de envio en mercadolibre.
