Ob5269cp Ob5269 Ob5269cpa Ob 5269cp 5269cpa Liteon On Ic

Ob5269cp Controlador Pwm High Voltage Original Sop8

*************************************************************************************************************************************************************

GENERAL DESCRIPTION

OB5269 is a highly integrated current mode PWM
control IC with high voltage start up, optimized for
high performance, low standby power
consumption and cost effective offline flyback
converter applications.
PWM switching frequency at normal operation is
internally fixed and is trimmed to a tight range. At
no load or light load condition, the IC operates in
extended ‘burst mode’ to minimize switching loss.
Very low standby power consumption and very
high conversion efficiency is thus achieved.
High voltage startup is implemented in OB5269,
which features with short startup time and low
standby current.
OB5269 offers complete protection coverage with
auto-recovery including Cycle-by-Cycle current
limiting (OCP), over load protection (OLP), and
VDD under voltage lockout (UVLO). It also
provides the protections with latched shut down
including over temperature protection (OTP), and
over voltage (fixed or adjustable) protection (OVP).
Excellent EMI performance is achieved with OnBright
proprietary frequency shuffling technique.
The tone energy at below 22KHZ is minimized to
avoid audio noise during operation.

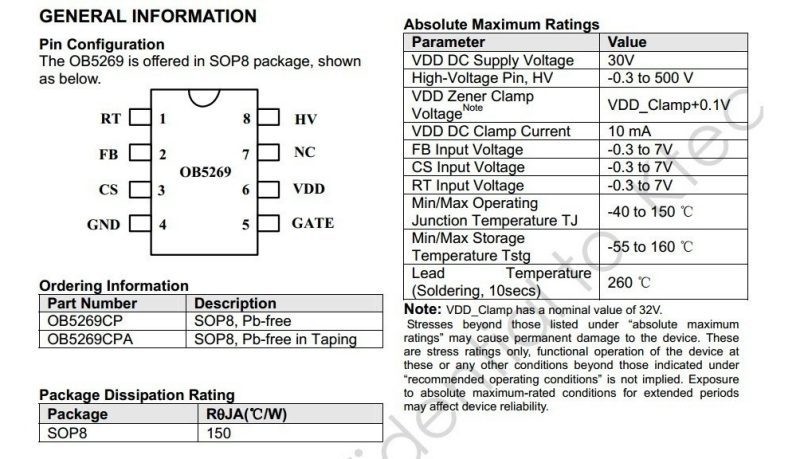

OB5269 is offered in SOP8 package.

FEATURES
¦ High Voltage Startup
¦ Power on Soft Start Reducing MOSFET Vds
Stress
¦ Frequency shuffling for EMI
¦ Extended Burst Mode Control For Improved
Efficiency and Minimum Standby Power
¦ Audio Noise Free Operation
¦ Fixed 65KHZ Switching Frequency
¦ Comprehensive Protection Coverage
o VDD Under Voltage Lockout with
Hysteresis (UVLO)
o Cycle-by-cycle over current protection
(OCP)
o Overload Protection (OLP) with autorecovery

o Over Temperature Protection (OTP) with
latch shut down
o VDD Over voltage Protection(OVP) with
latch shut down
o Adjustable OVP through external Zener

APPLICATIONS
Offline AC/DC flyback converter for
¦ Battery Charger
¦ Power Adaptor
¦ Open-frame SMPS

*************************************************************************************************************************************************************
