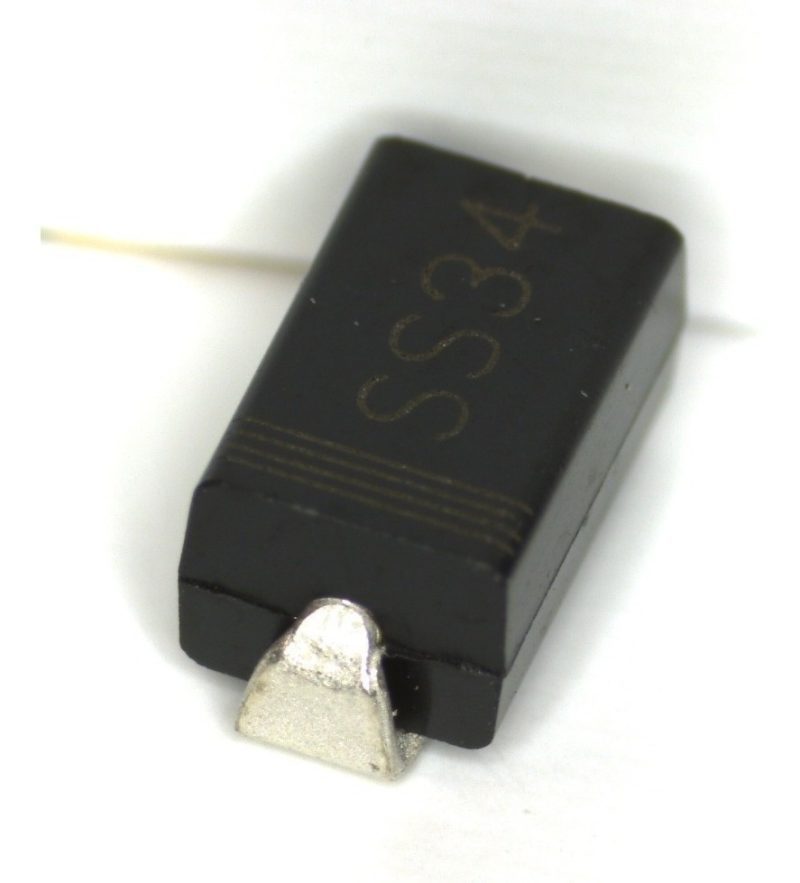

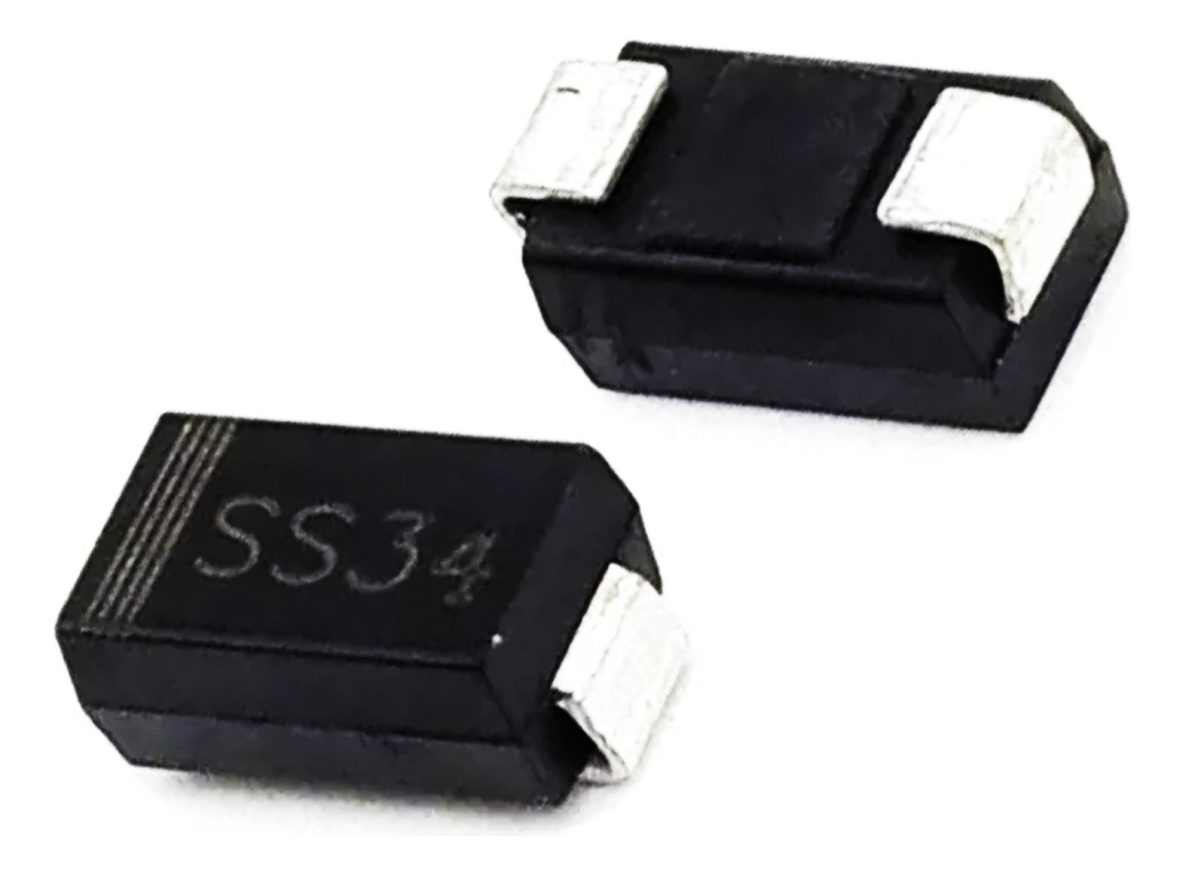

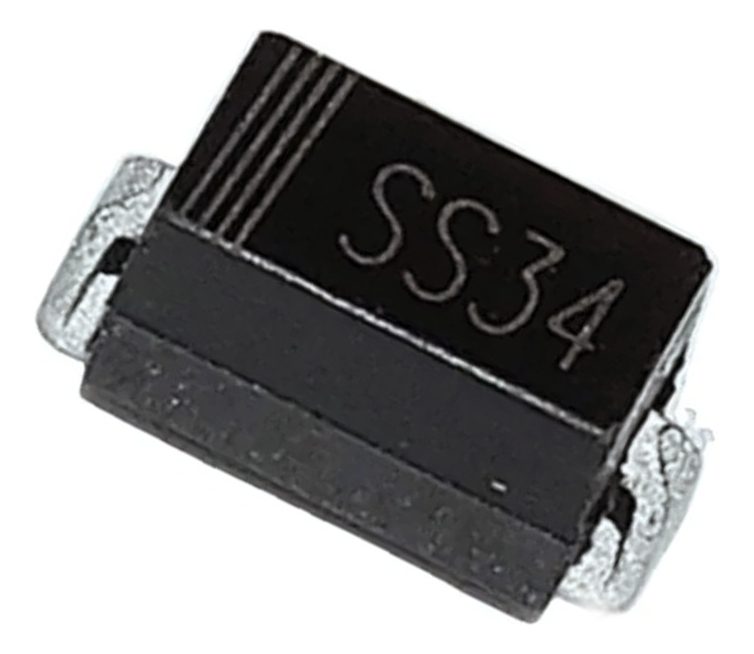

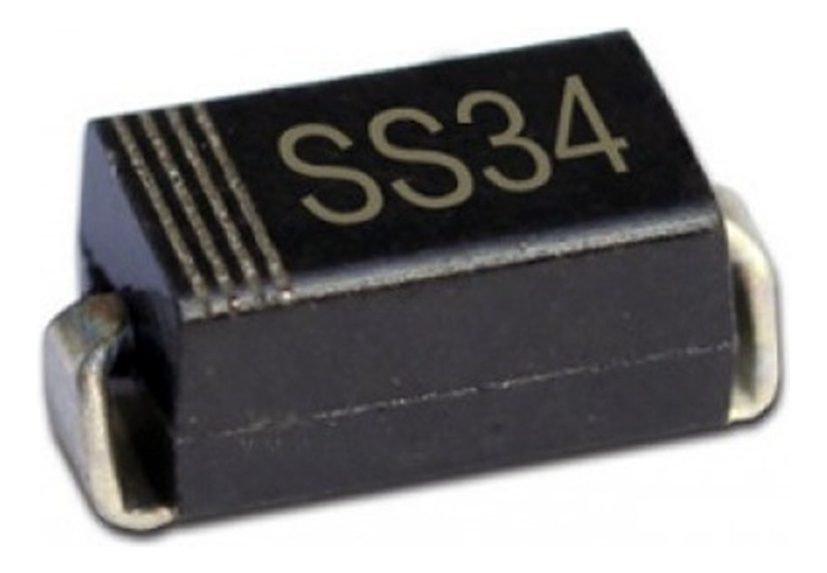

Diodo Schottky Ss34 sk34 40v 3a Smd

*************************************************************************************************************************************************************

Manufacturer: ON Semiconductor
Product Category: Schottky Diodes & Rectifiers
RoHS: Details
Product: Schottky Rectifiers
Mounting Style: SMD/SMT
Package / Case: SMC (DO-214AB)
If – Forward Current: 3 A
Vrrm – Repetitive Reverse Voltage: 40 V
Vf – Forward Voltage: 0.5 V
Ifsm – Forward Surge Current: 100 A
Configuration: Single
Technology: Si
Ir – Reverse Current: 500 uA
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
Series: SS34
Height: 2.45 mm (Max)
Length: 7.15 mm (Max)
Operating Temperature Range: – 55 C to + 150 C
Type: Schottky Diode
Width: 6.25 mm (Max)
Brand: ON Semiconductor / Fairchild
Product Type: Schottky Diodes & Rectifiers
Subcategory: Diodes & Rectifiers
Part # Aliases: SS34_NL
Unit Weight: 300 mg

*************************************************************************************************************************************************************
La Compra es Automatizada y 100% segura, se cancela a Traves de Mercadopago y luego te enviamos por Servientrega o Mercadoenvios que es lo mismo, puede cancelar via Transferencia, Tarjeta de Credito, Efecty.
—————————————————————————————————————-
El Sistema a veces se demora en actualizar el status de envio en mercadolibre.
