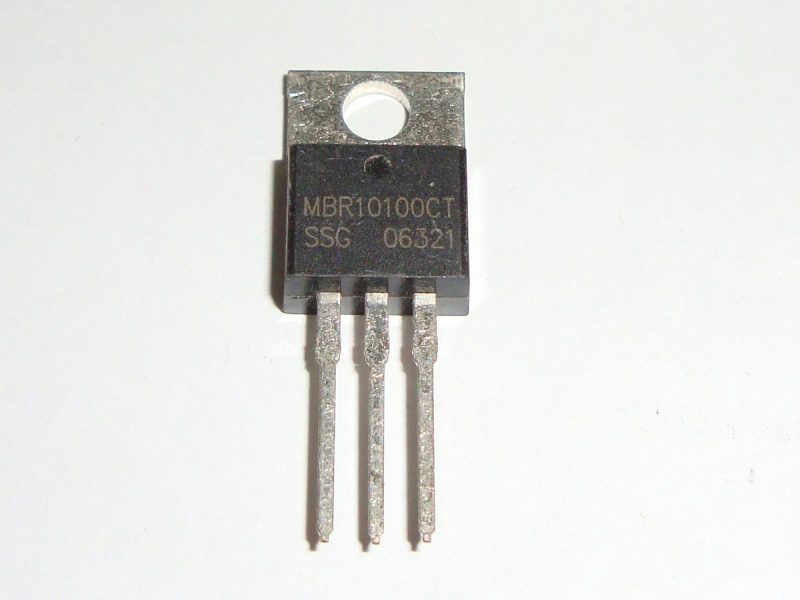

Mbr10100ct Diodo Mbr10100 10a, 100v, To-220ab, 3-pines

$ 12.000 $ 10.800

Comprar vía WhatsApp

Mbr10100ct Diodo Mbr10100 10a, 100v, To-220ab, 3-pines

*************************************************************************************************************************************************************

PRIMARY CHARACTERISTICS
IF(AV) 2 x 5.0 A
VRRM 90 V, 100 V
IFSM 120 A
VF 0.75 V
TJ max. 150 °C
Package TO-220AB
Diode variation Dual common cathode

FEATURES
• Trench MOS Schottky technology
• Lower power losses, high efficiency
• Low forward voltage drop
• High forward surge capability
• High frequency operation
• Solder bath temperature 275 °C maximum, 10 s, per
JESD 22-B106
• Material categorization: for definitions of compliance
TYPICAL APPLICATIONS
For use in high frequency rectifier of switching mode power
supplies, freewheeling diodes, DC/DC converters or polarity
protection application
MECHANICAL DATA
Case: TO-220AB
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 – halogen-free, RoHS-compliant, and
commercial grade
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 1A whisker test
Polarity: As marked
Mounting Torque: 10 in-lbs maximum

*************************************************************************************************************************************************************
