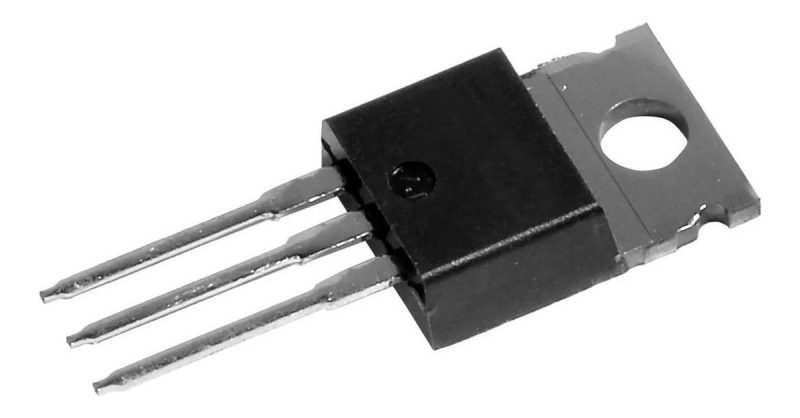

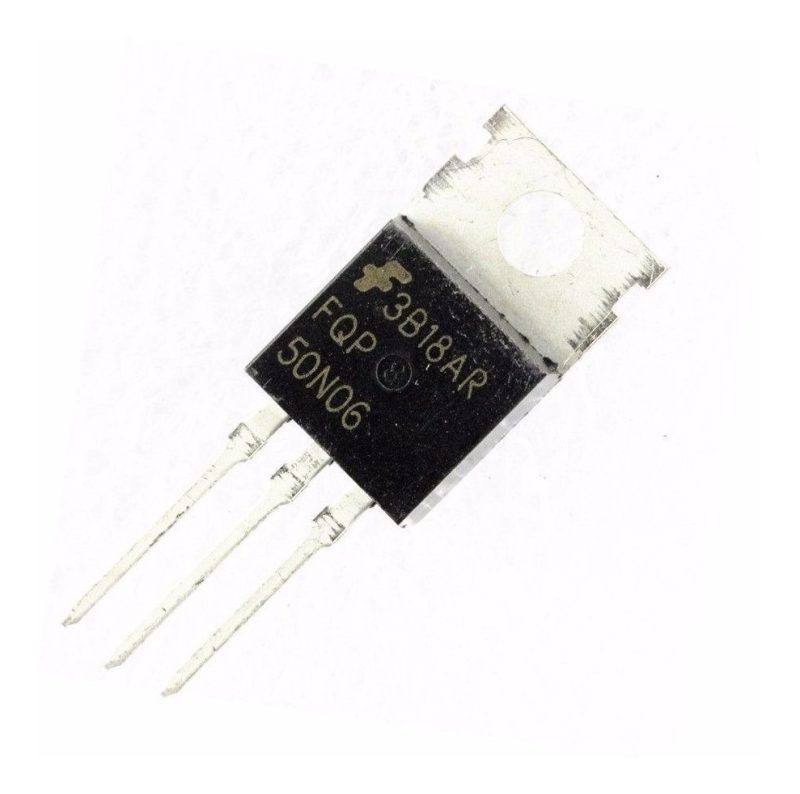

26 X Pack – Transistor Mosfet 50n06 Fqp50n06 Reemp Sfp50n06

26 x Transistor Mosfet 50n06 FQP50n06 RFP50N06 Reemplaza Sfp50n06 Kia50n06

*************************************************************************************************************************************************************

Manufacturer: ON Semiconductor
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds – Drain-Source Breakdown Voltage: 60 V
Id – Continuous Drain Current: 50 A
Rds On – Drain-Source Resistance: 22 mOhms
Vgs – Gate-Source Voltage: 25 V
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 175 C
Configuration: Single
Pd – Power Dissipation: 120 W
Channel Mode: Enhancement
Height: 16.3 mm
Length: 10.67 mm
Series: FQP50N06
Transistor Type: 1 N-Channel
Type: MOSFET
Width: 4.7 mm
Brand: ON Semiconductor / Fairchild
Forward Transconductance – Min: 22 S
Fall Time: 65 ns
Product Type: MOSFET
Rise Time: 105 ns
Subcategory: MOSFETs
Typical Turn-Off Delay Time: 60 ns
Typical Turn-On Delay Time: 15 ns
Part # Aliases: FQP50N06_NL
Unit Weight: 1.800 g

*************************************************************************************************************************************************************
La Compra es Automatizada y 100% segura, se cancela a Traves de Mercadopago y luego te enviamos por Servientrega o Mercadoenvios que es lo mismo, puede cancelar via Transferencia, Tarjeta de Credito, Efecty.
—————————————————————————————————————-
El Sistema a veces se demora en actualizar el status de envio en mercadolibre.
