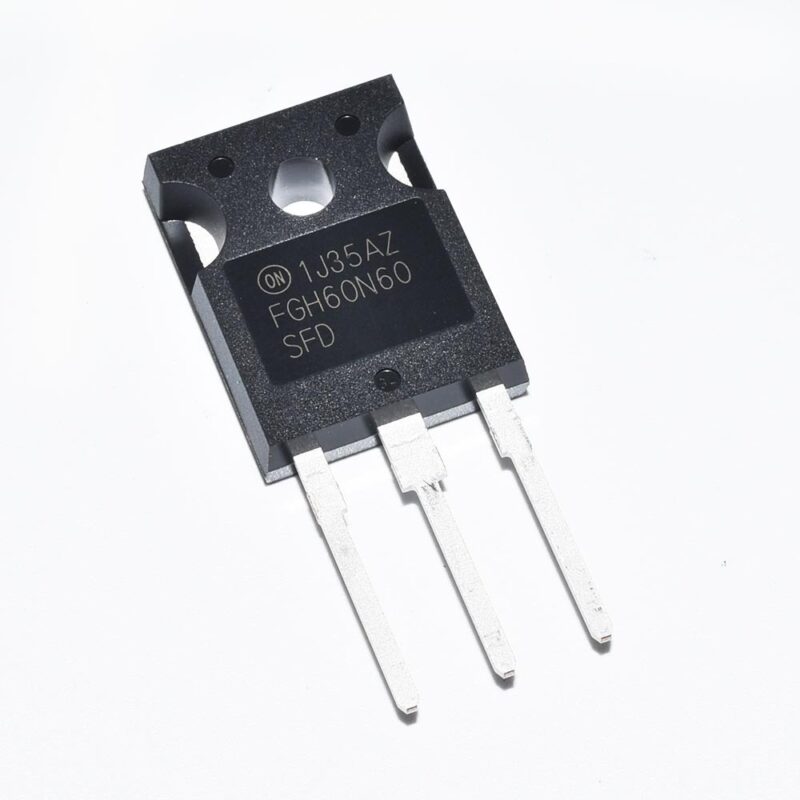

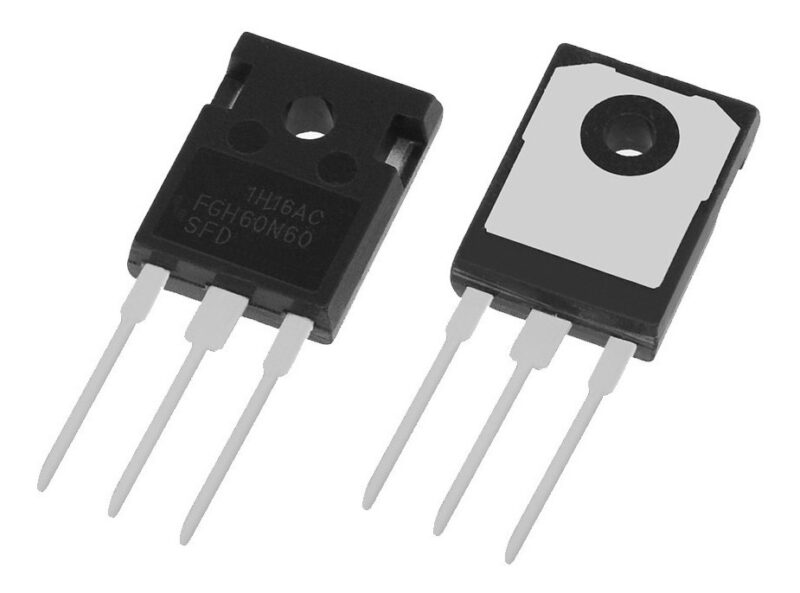

5x Fgh60n60sfd Fgh60n60 60n60 Transistor Igbt To247 600v 60a
$ 78.000 $ 70.200
Comprar vía WhatsApp
FGH60N60SFD 600V, 60A Field Stop IGBT
*************************************************************************************************************************************************************
Manufacturer: ON Semiconductor
Product Category: IGBT Transistors
RoHS: Details
Technology: Si
Package / Case: TO-247-3
Mounting Style: Through Hole
Configuration: Single
Collector- Emitter Voltage VCEO Max: 600 V
Collector-Emitter Saturation Voltage: 2.2 V
Maximum Gate Emitter Voltage: 20 V
Continuous Collector Current at 25 C: 120 A
Pd – Power Dissipation: 378 W
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
Series: FGH60N60SF_F085
Qualification: AEC-Q101
Packaging: Tube
Continuous Collector Current Ic Max: 60 A
Brand: ON Semiconductor / Fairchild
Gate-Emitter Leakage Current: +/- 400 nA
Product Type: IGBT Transistors
Subcategory: IGBTs
Part # Aliases: FGH60N60SFDTU_F085
Unit Weight: 6.390 g
*************************************************************************************************************************************************************
