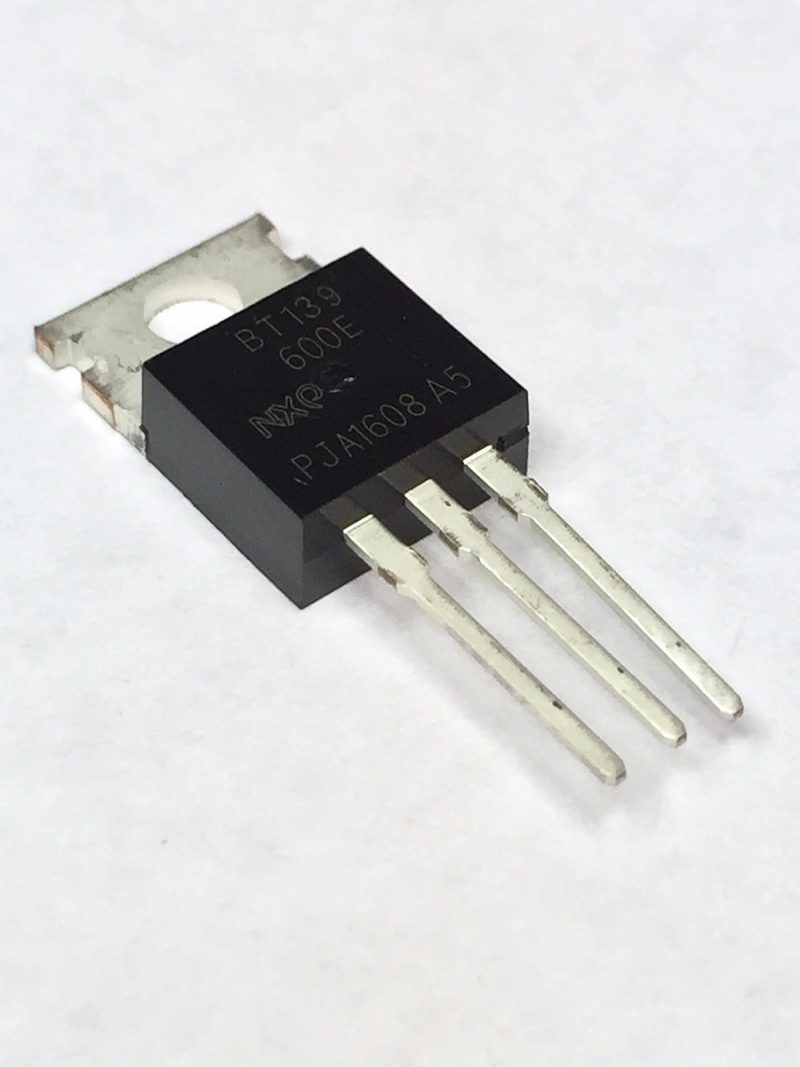

Bt139-600e Bta139 600e Triac 16a 600v Ig=10ma To220
$ 7.000
Bt139-600e Bta139 600e Triac 16a 600v Ig=10ma to220
*************************************************************************************************************************************************************
Product Category: Triacs
RoHS: Details
On-State RMS Current – It RMS: 16 A
Non Repetitive On-State Current: 155 A
Rated Repetitive Off-State Voltage VDRM: 600 V
Off-State Leakage Current @ VDRM IDRM: 100 uA
On-State Voltage: 1.2 V
Holding Current Ih Max: 45 mA
Gate Trigger Voltage – Vgt: 700 mV
Gate Trigger Current – Igt: 11 mA
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: TO-220-3
Product: Triacs
Brand: WeEn Semiconductors
Product Type: Triacs
Subcategory: Thyristors
Part # Aliases: 933530030127 BT139-600E
Unit Weight: 6 g
*************************************************************************************************************************************************************
