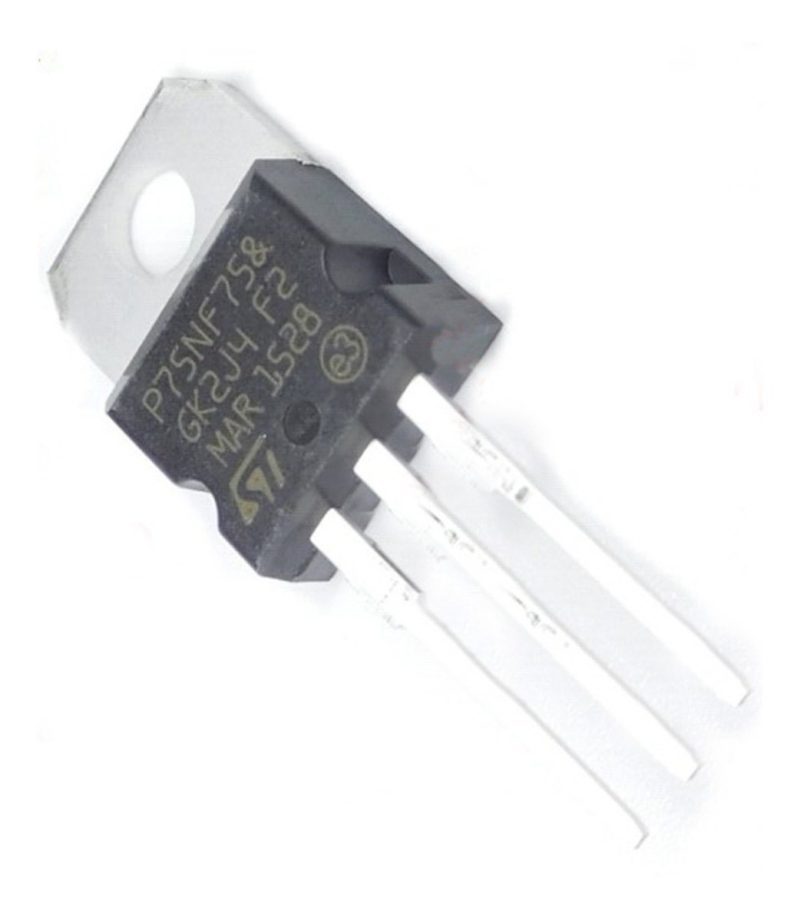

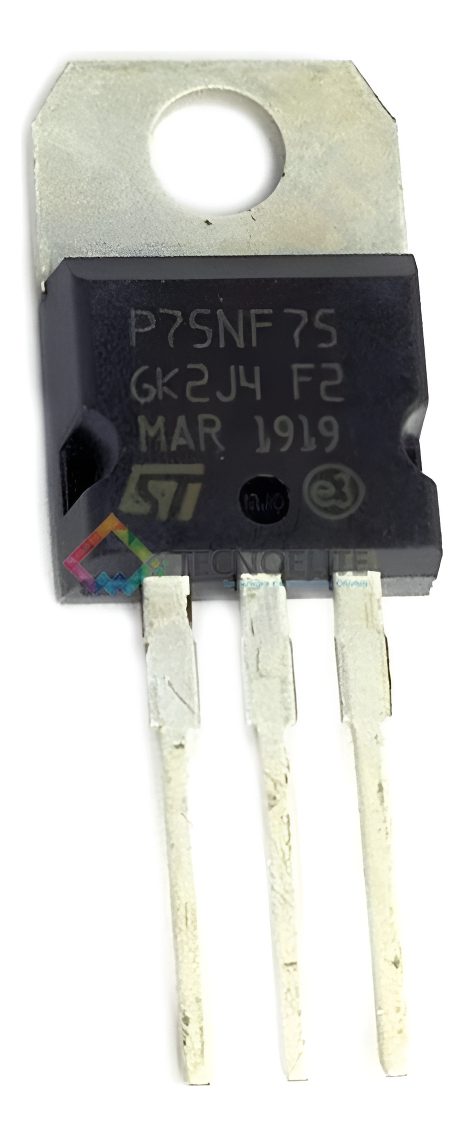

P75nf75 P75n75 Mosfet De Canal N Original 75 Volt 80 Amp
$ 6.800
P75nf75 Mosfet De Canal N Original St
*************************************************************************************************************************************************************
Manufacturer: STMicroelectronics
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds – Drain-Source Breakdown Voltage: 75 V
Id – Continuous Drain Current: 80 A
Rds On – Drain-Source Resistance: 9.5 mOhms
Vgs – Gate-Source Voltage: 20 V
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 175 C
Configuration: Single
Channel Mode: Enhancement
Packaging: Tube
Height: 9.15 mm
Length: 10.4 mm
Series: STP75NF75FP
Transistor Type: 1 N-Channel
Type: MOSFET
Width: 4.6 mm
Brand: STMicroelectronics
Forward Transconductance – Min: 20 S
Fall Time: 30 ns
Pd – Power Dissipation: 300 W
Rise Time: 100 ns
Factory Pack Quantity: 1000
Typical Turn-Off Delay Time: 66 ns
Typical Turn-On Delay Time: 25 ns
Unit Weight: 2 g
*************************************************************************************************************************************************************
La Compra es Automatizada y 100% segura, se cancela a Traves de Mercadopago y luego te enviamos por Servientrega o Mercadoenvios que es lo mismo, puede cancelar via Transferencia, Tarjeta de Credito, Efecty.
—————————————————————————————————————-
El Sistema a veces se demora en actualizar el status de envio en mercadolibre.
