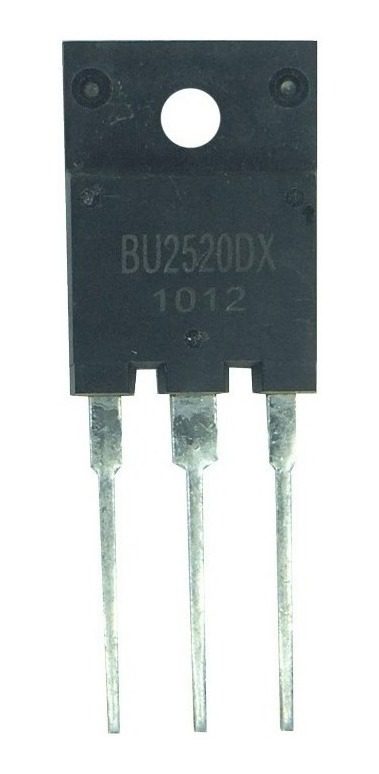

Transistor Bu 2520 Dx Original Philips Bu2520dx

Transistor Bu 2520 Dx Original Philips Bu2520dx

*************************************************************************************************************************************************************

GENERAL DESCRIPTION
New generation, high-voltage, high-speed switching npn transistor with an integrated damper diode in a full plastic
envelope intended for use in horizontal deflection circuits of large screen colour television receivers.

GENERAL DESCRIPTION
New generation, high-voltage, high-speed switching npn transistor with an integrated damper diode in a full plastic
envelope intended for use in horizontal deflection circuits of large screen colour television receivers.
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT
VCESM Collector-emitter voltage peak value VBE = 0 V – 1500 V
VCEO Collector-emitter voltage (open base) – 800 V
IC Collector current (DC) – 10 A
ICM Collector current peak value – 25 A
Ptot Total power dissipation Ths = 25 °C – 45 W
VCEsat Collector-emitter saturation voltage IC = 6.0 A; IB = 1.2 A – 5.0 V
ICsat Collector saturation current 6 – A
VF Diode forward voltage IF = 6.0 A – 2.2 V
tf Fall time ICsat = 6.0 A; IB(end) = 1.0 A 0.35 0.5 µs

*************************************************************************************************************************************************************
La Compra es Automatizada y 100% segura, se cancela a Traves de Mercadopago y luego te enviamos por Servientrega o Mercadoenvios que es lo mismo, puede cancelar via Transferencia, Tarjeta de Credito, Efecty.
—————————————————————————————————————-
El Sistema a veces se demora en actualizar el status de envio en mercadolibre.
