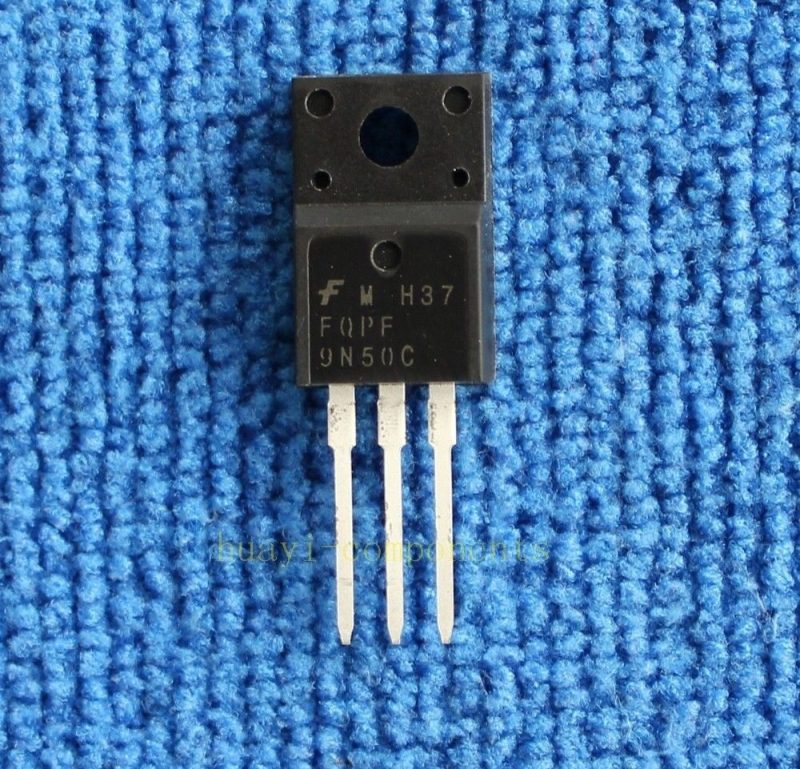

Transistor Fqpf9n50 9n50 Fqpf9n50c 9n50c 500v A-220f

Transistor FQPF9N50 9N50 FQPF9N50C 9N50C 500v a-220f

*************************************************************************************************************************************************************

Manufacturer: ON Semiconductor
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds – Drain-Source Breakdown Voltage: 500 V
Id – Continuous Drain Current: 9 A
Rds On – Drain-Source Resistance: 800 mOhms
Vgs – Gate-Source Voltage: 30 V
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
Configuration: Single
Pd – Power Dissipation: 44 W
Channel Mode: Enhancement
Height: 16.3 mm
Length: 10.67 mm
Series: FQPF9N50C
Transistor Type: 1 N-Channel
Type: MOSFET
Width: 4.7 mm
Brand: ON Semiconductor / Fairchild
Forward Transconductance – Min: 6.5 S
Fall Time: 64 ns
Product Type: MOSFET
Rise Time: 65 ns
Subcategory: MOSFETs
Typical Turn-Off Delay Time: 93 ns
Typical Turn-On Delay Time: 18 ns
Part # Aliases: FQPF9N50C_NL
Unit Weight: 2.270 g

*************************************************************************************************************************************************************
