Transistor Mosfet 100v 42a Irfp150n Irfp150 W60n10 Original

Transistor Mosfet 50a 100v Irfp150n Irfp150 Irfp3710 W60n10

*************************************************************************************************************************************************************

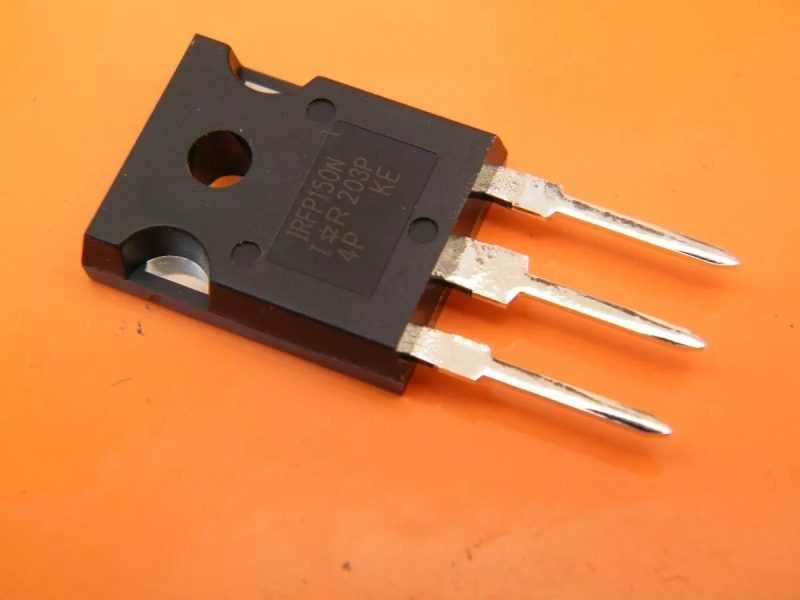

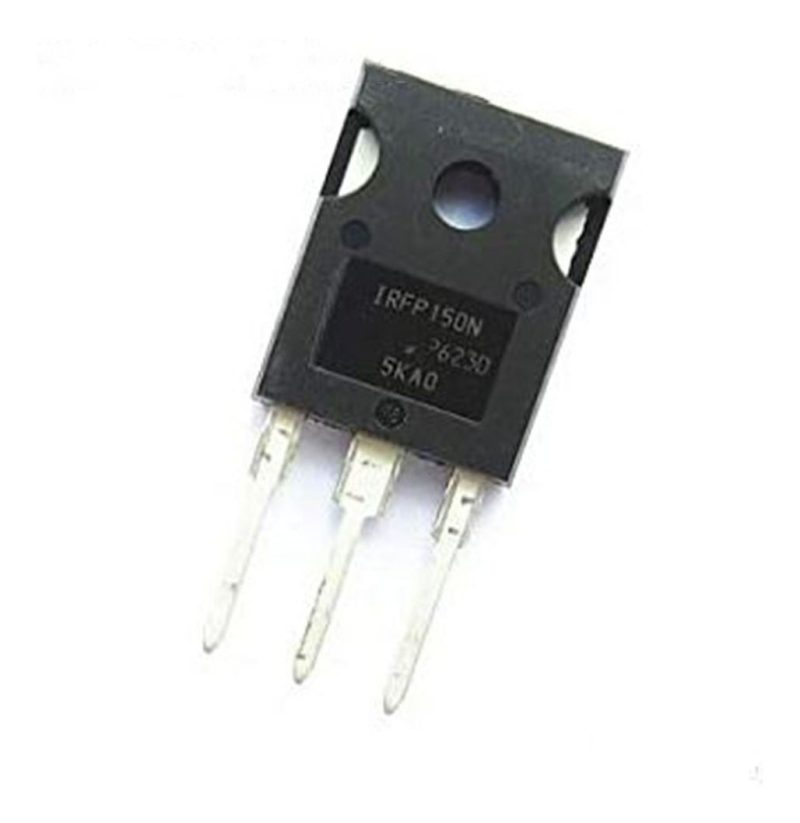

Transistor MOSFET CANAL N
Codigo IRFP150N
Marca: IOR Infineon
RDSon = 0.035 Ohms (Típico 0.027 Ohms)
Cápsula : TO-247/TOP-3P

Reemplazo/Alternativa para:
IRF150,
IRFP150,
STW60NE10,
IRFP3710,
FQH44N10,
HUF75639

Manufacturer: Infineon
Product Category: MOSFET
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-247-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds – Drain-Source Breakdown Voltage: 100 V
Id – Continuous Drain Current: 42 A
Rds On – Drain-Source Resistance: 36 mOhms
Vgs – Gate-Source Voltage: 20 V
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 175 C
Configuration: Single
Pd – Power Dissipation: 150 W
Channel Mode: Enhancement
Height: 20.7 mm
Length: 15.87 mm
Transistor Type: 1 N-Channel
Width: 5.31 mm
Brand: Infineon / IR
Fall Time: 40 ns
Rise Time: 56 ns
Typical Turn-Off Delay Time: 45 ns
Typical Turn-On Delay Time: 11 ns
Unit Weight: 38 g

*************************************************************************************************************************************************************
La Compra es Automatizada y 100% segura, se cancela a Traves de Mercadopago y luego te enviamos por Servientrega o Mercadoenvios que es lo mismo, puede cancelar via Transferencia, Tarjeta de Credito, Efecty.
—————————————————————————————————————-
El Sistema a veces se demora en actualizar el status de envio en mercadolibre.
